Allegro Wide

Allegro Wide

A wider top down X-ray system suitable for a range of package types and loose product up to 10″ in height and 30″ in width

Request details

Key Stats

X-ray tube
100W Monobloc
210 W Monobloc Optional
Be Tube Optional
Metal detection size
0.5 mm SS
Glass detection size
1.5 mm SLG
Speed
Up to 133 m/min
Common Options
Multi-Lane Support
Lockable Reject Bin
Test Samples Kit
Operations Guardian
Environmental Options
Cold Weather Package
High Performance Air Conditioning
IP 69K Enclosure

Typical Applications

Metalized Foil Pouches
Plastic Yogurt Cups
Low Profile Package

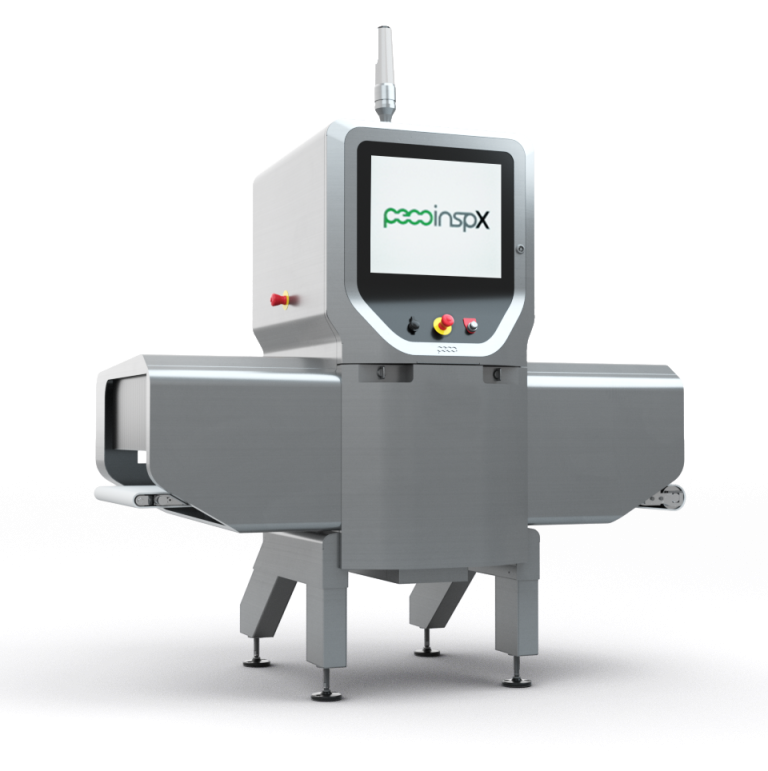

SHIELD Allegro: Powerful and Easy to Use

No other top-down X-Ray system on the market offers such a robust set of standard features coupled with high performance options typically only available on machines costing thousands more.

The Allegro is also easy to own and inexpensive to maintain. Superior InspX service ensures that you’ll have access to immediate support 24X7 and convenient local service when you need it. And because the Allegro is designed for reliable operation, you’ll be pleased with its low cost of ownership.

Tech Specs

Machine Architectures Top-Down X-Ray system
X-Ray Tube Configuration One modular, high performance x-ray assembly
Product/Package Size Width: 450 mm (17.7 inches)

Height: 254 mm (10.0 Inches)
Environment IP 66 (IP 69K optional)
Speed Up to 133m/minute (436ft/min)
Voltage 120-240VAC @ 2.4kVA, 50/60 Hz single phase
Air 80psi @5cfm (for ejection only)
Temperature 1ºC – 45ºC (34ºF – 133ºF)
Container Ejection Full family of ejection options available
Dimensions (LxWxH) 1041 mm x 1829 mm x 1544 mm

Features

Easy to Use

All ScanTrac X-Ray inspection systems offer advanced inspection software that is developed in Silicon Valley, California. This software automates much of the product setup process so that new operators can proficiently use the machine with just one hour of training.

High Performance X-Ray Tube

The Allegro features a 100 Watt X-Ray source that is explicitly designed for use in this machine. The tube is designed for continuous long-life operation. It is also maintenance free (i.e. there is no oil to change). An optional beryllium window tube is also available for high resolution applications.

17” Touch Screen Display

The Allegro features a large 17” touch screen display that allows for an easy to read operator experience. It’s also extremely easy to get a good look at reject images and clearly identify contaminants.

Software Switchable Detector Resolution

The Allegro features software switchable 0.8 mm/0.4 mm diode array. This flexibility allows the user to select the optimal detector resolution for a specific application (software overscanning is also available at both resolutions).

Feature Rich Software

Peco-InspX high resolution inspection software or HDRX is the most advanced automated inspection software available today. The software features algorithms for:

  • 15 Different Foreign Material Inspections
  • Void Detection
  • Mass Measurement

Options

Operations Guardian

Operations Guardian is a revolutionary monitoring system that offers a variety of advantages:

  • Real time system and performance monitoring of each machine
  • Proactive outreach from Peco-InspX service when problems occur
  • Insight into operational performance bottlenecks
  • Automatic archiving and classification of reject images
  • Optional archiving of all inspection images
High Speed Conveyor

The standard Allegro conveyor is capable of speeds up to 67 meters (200 feet) per minute. An optional high speed conveyor is available that doubles the speed to 133 meters (400 feet) per minute.

Sanitary Design

The Allegro is available with an optional washdown (IP69K) cabinet and full sanitary conveyor made by Dorner manufacturing.

Full Assortment of Ejection Options

Peco-InspX designs and manufactures a wide assortment of high performance ejectors and diverters. Learn more
